Steering
"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.
drag link
1971-80
scout ii/terra/traveler		 power steering pump assembly
1971-80
scout ii

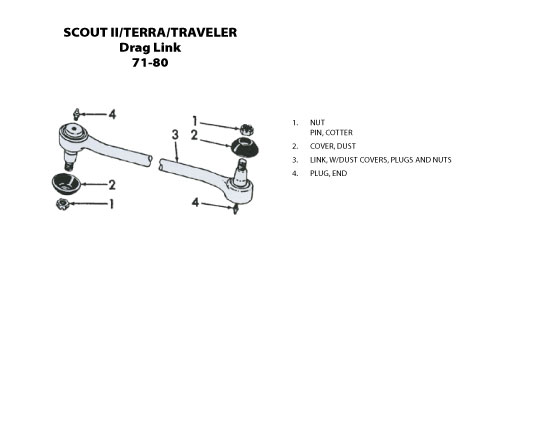

Drag Link
Click Image for Larger View
  1. Nut
    Pin, Cotter
  2. Cover, Dust
  3. Link, w/Dust Covers, Plugs and Nuts
  4. Plug, End

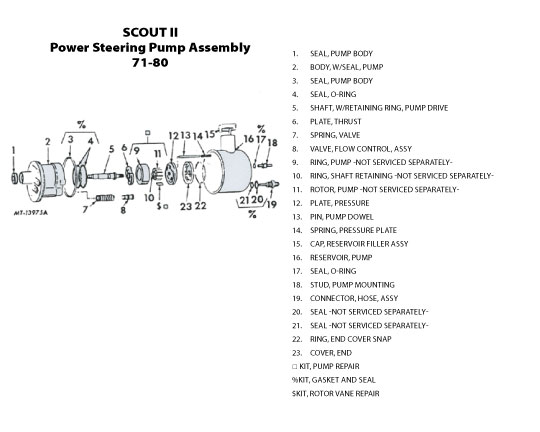

 Power Steering Pump Assembly
Click Image for Larger View
  1. Seal, Pump Body
  2. Body, w/Seal, Pump
  3. Seal, Pump Body
  4. Seal, O-Ring
  5. Shaft, w/Retaining Ring, Pump Drive
  6. Plate, Thrust
  7. Spring, Valve
  8. Valve, Flow Control, Assy
  9. Ring, Pump -Not Serviced Separately-
  10. Ring, Shaft Retaining -Not Serviced Separately-
  11. Rotor, Pump -Not Serviced Separately-
  12. Plate, Pressure
  13. Pin, Pump Dowel
  14. Spring, Pressure Plate
  15. Cap, Reservoir Filler Assy
  16. Reservoir, Pump
  17. Seal, O-Ring
  18. Stud, Pump Mounting
  19. Connector, Hose, Assy
  20. Seal -Not Serviced Separately-
  21. Seal -Not Serviced Separately-
  22. Ring, End Cover Snap
  23. Cover, End

* Kit, Pump Repair

%Kit,Gasket and Seal

$Kit, Rotor Vane Repair

Return to Top

power steering pump mtg, hose, fittings
4 cylinder
1971-80
scout ii/terra/traveler

power steering pump mtg, hose fittings
6 cylinder
1971-75
Scout ii

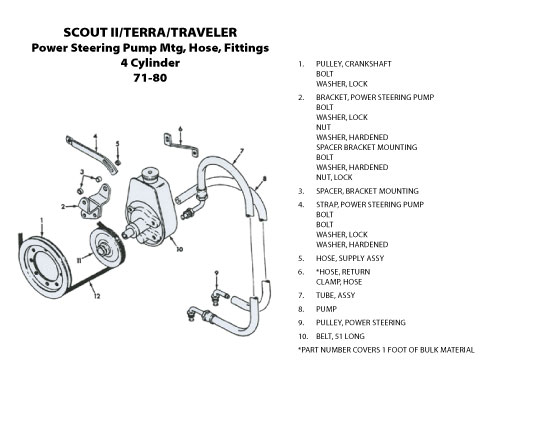

Power Steering Pump Mtg, Hose, Fittings
Click Image for Larger View
  1. Pulley, Crankshaft
    Bolt
    Washer, Lock
  2. Bracket, Power Steering Pump
    Bolt
    Washer, Lock
    Nut
    Washer, Hardened
  3. Spacer Bracket Mounting
    Bolt
    Washer, Hardened
    Nut, Lock
  4. Spacer, Bracket Mounting
  5. Strap, Power Steering Pump
    Bolt
    Bolt
    Washer, Lock
    Washer, Hardened
  6. Hose, Supply Assy
  7. *Hose, Return
  8. Clamp, Hose
  9. Tube, Assy
  10. Pump
  11. Pulley, Power Steering
  12. Belt, 51 Long

*Part Number Covers 1 Foot of Bulk Material

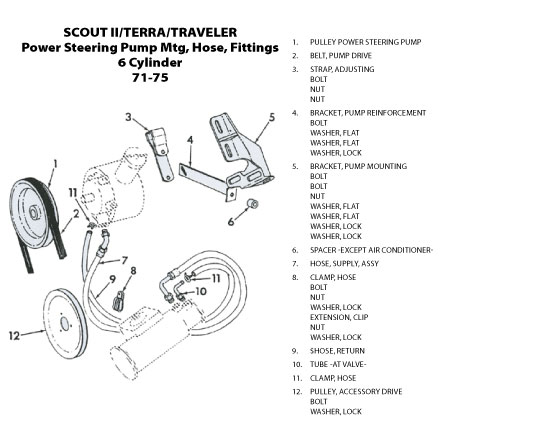

 Power Steering Pump Mtg, Hose, Fittings
Click Image for Larger View
  1. Pulley Power Steering Pump
  2. Belt, Pump Drive
  3. Strap, Adjusting
    Bolt
    Nut
    Nut
  4. Bracket, Pump Reinforcement
    Bolt
    Washer, Flat
    Washer, Flat
    Washer, Lock
  5. Bracket, Pump Mounting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
    Washer, Lock
  6. Spacer -Except Air Conditioner-
  7. Hose, Supply, Assy
  8. Clamp, Hose
    Bolt
    Nut
    Washer, Lock
  9. Extension, Clip
    Nut
    Washer, Lock
  10. $Hose, Return
    Tube -At Valve-
  11. Clamp, Hose
  12. Pulley, Accessory Drive
    Bolt
    Washer, Lock

Return to Top


p/s hose & fittings, pump, pump mtg
V8
1971-80
Scout ii/terra/traveler

 power steering mtg, hose, fittings
diesel
1976-80
scout ii/terra/traveler

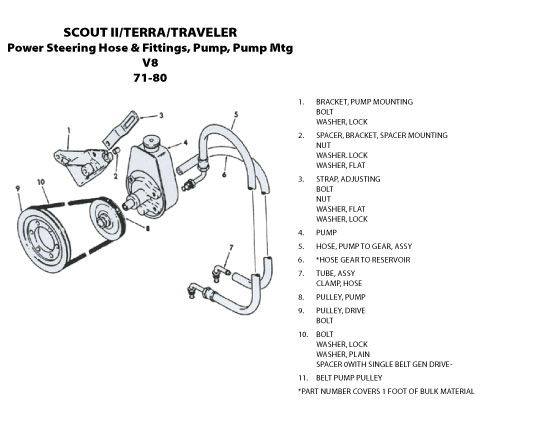

Power Steering Hose and Fittings, Pump, Pump Mounting
Click Image for Larger View
  1. Bracket, Pump Mounting
    Bolt
    Washer, Lock
  2. Spacer, Bracket, Spacer Mounting
    Nut
    Washer. Lock
    Washer, Flat
  3. Strap, Adjusting
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  4. Pump
  5. Hose, Pump to Gear, Assy
  6. *Hose, Gear to Reservoir
  7. Tube, Assy
    Clamp, Hose
  8. Pulley, Pump
  9. Pulley, Drive
    Bolt
    Bolt
    Washer, Lock
    Washer, Plain
    Spacer -With Single Belt Gen Drive-
  10. Belt Pump Pulley

*Part Number Covers 1 Foot of Bulk Material

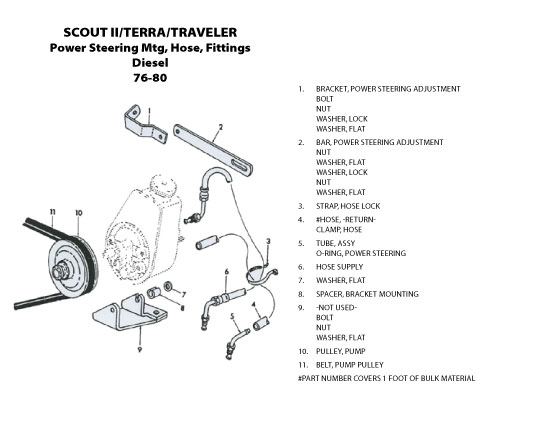

 Power Steering Mounting, Hose, Fittings
Click Image for Larger View
  1. Bracket, Power Steering Adjustment
    Bolt
    Nut
    Washer, Lock
    Washer, Flat
  2. Bar, Power Steering Adjustment
    Nut
    Washer, Flat
    Washer, Lock
    Nut
    Washer, Flat
  3. Strap, Hose Lock
  4. #Hose, -Return-
    Clamp, Hose
  5. Tube, Assy
    O-Ring, Power Steering
  6. Hose Supply
  7. Washer, Flat
  8. Spacer, Bracket Mounting
  9. -Not Used-
    Bolt
    Nut
    Washer, Flat
  10. Pulley, Pump
  11. Belt, Pump Pulley

#Part Number Covers 1 Foot of Bulk Material

Return to Top

steering column & wheel
non-tilt column
1971-80
scout ii/terra/traveler

steering column & wheel
tilt
1971-80
Scout ii

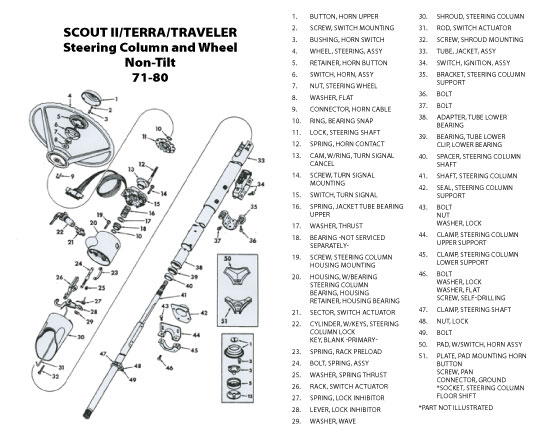

Steering Column & Wheel Non-Tilt
Click Image for Larger View
  1. Button, Horn Upper
  2. Screw, Switch Mounting
  3. Bushing, Horn Switch
  4. Wheel, Steering, Assy
  5. Retainer, Horn Button
  6. Switch, Horn, Assy
  7. Nut, Steering Wheel
  8. Washer, Flat
  9. Connector, Horn Cable
  10. Ring, Bearing Snap
  11. Lock, Steering Shaft
  12. Spring, Horn Contact
  13. Cam, w/Ring, Turn Signal Cancel
  14. Screw, Turn Signal Mounting
  15. Switch, Turn Signal
  16. Spring, Jacket Tube Bearing Upper
  17. Washer, Thrust
  18. Bearing -Not Serviced Separately-
  19. Screw, Steering Column Housing Mounting
  20. Housing, w/Bearing Steering Column
    Bearing, Housing
    Retainer, Housing Bearing
  21. Sector, Switch Actuator
  22. Cylinder, w/Keys, Steering Column
    Lock
    Key, Blank -Primary-
  23. Spring, Rack Preload
  24. Bolt, Spring, Assy
  25. Washer, Spring Thrust
  26. Rack, Switch Actuator
  27. Spring, Lock Inhibitor
  28. Lever, Lock Inhibitor
  29. Washer, Wave
  30. Shroud, Steering Column
  31. Rod, Switch Actuator
  32. Screw, Shroud Mounting
  33. Tube, Jacket, Assy
  34. Switch, Ignition, Assy
  35. Bracket, Steering Column Support
  36. Bolt
  37. Bolt
  38. Adapter, Tube Lower Bearing
  39. Bearing, Tube Lower
    Clip, Lower Bearing
  40. Spacer, Steering Column Shaft
  41. Shaft, Steering Column
  42. Seal, Steering Column Support
  43. Bolt
    Nut
    Washer, Lock
  44. Clamp, Steering Column Upper Support
  45. Clamp, Steering Column Lower Support
  46. Bolt
    Washer, Lock
    Washer, Flat
    Screw, Self-Drilling
  47. Clamp, Steering Shaft
  48. Nut, Lock
  49. Bolt
  50. Pad, w/Switch, Horn Assy
  51. Plate, Pad Mounting Horn Button
    Screw, Pan
    Connector, Ground
    *Socket, Steering Column Floor Shift

*Part Not Illustrated

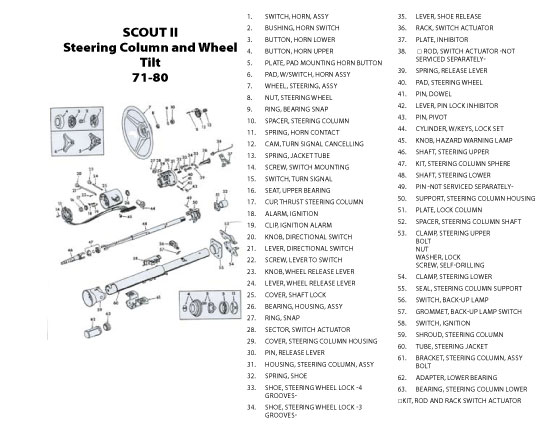

 Steerng Column & Wheel Tilt
Click Image for Larger View
  1. Switch, Horn, Assy
  2. Bushing, Horn Switch
  3. Button, Horn Lower
  4. Button, Horn Upper
  5. Plate, Pad Mounting Horn Button
  6. Pad, w/Switch, Horn Assy
  7. Wheel, Steering, Assy
  8. Nut, Steering Wheel
  9. Ring, Bearing Snap
  10. Spacer, Steering Column
  11. Spring, Horn Contact
  12. Cam, Turn Signal Canceling
  13. Spring, Jacket Tube
  14. Screw, Switch Mounting
  15. Switch, Turn Signal
  16. Seat, Upper Bearing
  17. Cup, Thrust Steering Column
  18. Alarm, Ignition
  19. Clip, Ignition Alarm
  20. Knob, Directional Switch
  21. Lever, Directional Switch
  22. Screw, Lever to Switch
  23. Knob, Wheel Release Lever
  24. Lever, Wheel Release Lever
  25. Cover, Shaft Lock
  26. Bearing, Housing, Assy
  27. Ring, Snap
  28. Sector, Switch Actuator
  29. Cover, Steering Column Housing
  30. Pin, Release Lever
  31. Housing, Steering Column, Assy
  32. Spring, Shoe
  33. Shoe, Steering Wheel Lock -4 Grooves-
  34. Shoe, Steering Wheel Lock -3 Grooves-
  35. Lever, Shoe Release
  36. Rack, Switch Actuator
  37. Plate, Inhibitor
  38. * Rod, Switch Actuator -Not Serviced Separately-
  39. Spring, Release Lever
  40. Pad, Steering Wheel
  41. Pin, Dowel
  42. Lever, Pin Lock Inhibitor
  43. Pin, Pivot
  44. Cylinder, w/Keys, Lock Set
  45. Knob, Hazard Warning Lamp
  46. Shaft, Steering Upper
  47. Kit, Steering Column Sphere
  48. Shaft, Steering Lower
  49. Pin -N0t Serviced Separately-
  50. Support, Steering Column Housing
  51. Plate, Lock Column
  52. Spacer, Steering Column Shaft
  53. Clamp, Steering Upper
    Bolt
    Nut
    Washer, Lock
    Screw, Self-Drilling
  54. Clamp, Steering Lower
  55. Seal, Steering Column Support
  56. Switch, Back-Up Lamp
  57. Grommet, Back-Up Lamp Switch
  58. Switch, Ignition
  59. Shroud, Steering Column
  60. Tube, Steering Jacket
  61. Bracket, Steering Column, Assy
    Bolt
  62. Adapter, Lower Bearing
  63. Bearing, Steering Column Lower

*Kit, Rod and Rack Switch Actuator

Return to Top



lower steering column assembly
manual
1971-80
scout ii/terra/traveler

steering gear
manual
1971-80
scout ii

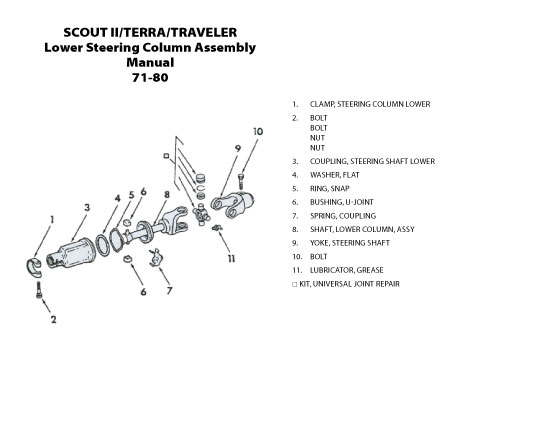

Lower Steering Column Assembly
Click Image for Larger View
  1. Clamp, Steering Column Lower
  2. Bolt
    Bolt
    Nut
    Nut
  3. Coupling, Steering Shaft Lower
  4. Washer, Flat
  5. Ring, Snap
  6. Bushing, U-Joint
  7. Spring, Coupling
  8. Shaft, Lower Column, Assy
  9. Yoke, Steering Shaft
  10. Bolt
  11. Lubricator, Grease

* Kit, Universal Joint Repair

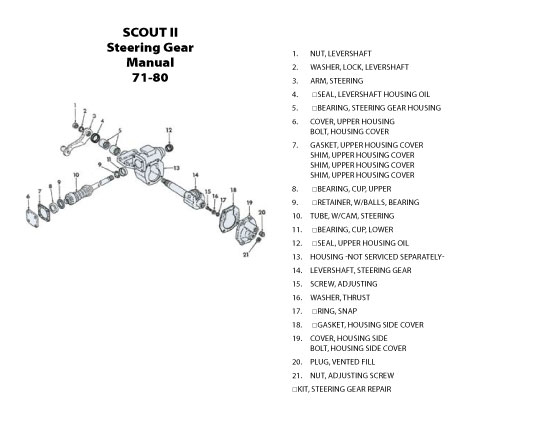

 Steering Gear
Click Image for Larger View
  1. Nut, Levershaft
  2. Washer, Lock, Levershaft
  3. Arm, Steering
  4. *Seal, Levershaft Housing Oil
  5. *Bearing, Steering Gear Housing
  6. Cover, Upper Housing
  7. Bolt, Housing Cover
  8. Gasket, Upper Housing Cover
    Shim, Upper Housing Cover
    Shim, Upper Housing Cover
    Shim, Upper Housing Cover
  9. *Bearing, Cup, Upper
  10. *Retainer, w/Balls, Bearing
  11. Tube, w/Cam, Steering
  12. *Bearing, Cup, Lower
  13. *Seal, Upper Housing Oil
  14. Housing -Not Serviced Separately-
  15. Levershaft, Steering Gear
  16. Screw, Adjusting
  17. Washer, Thrust
  18. *Ring, Snap
  19. *Gasket, Housing Side Cover
  20. Cover, Housing Side
  21. Bolt, Housing Side Cover
  22. Plug, Vented Fill
  23. Nut, Adjusting Screw

*Kit, Steering Gear Repair

Return to Top

steering gear
power
1971-80
scout ii/terra/traveler

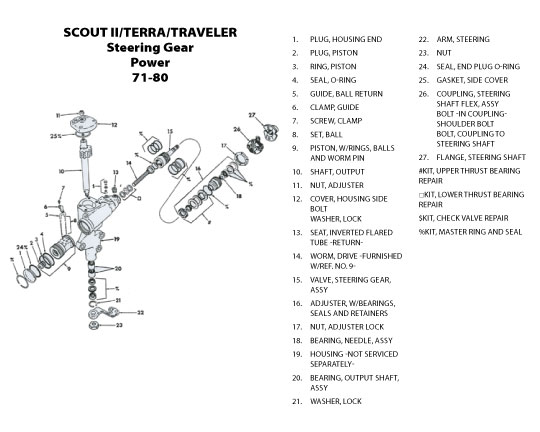

Steering Gear
